Multihull Net Installation Hardware

This page lists some of the installation hardware available from Sunrise Yacht Products

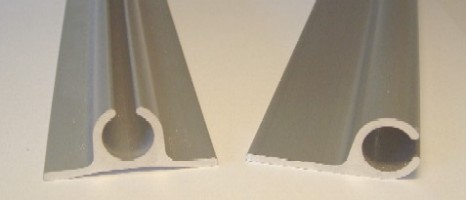

Boltrope Track


Part Number Item Description
VTD Deck Track single flange track for attachment to horizontal surfaces, 1-3/4" wide 1/2" I.D., cut to lengths up to 24 ft
VTH Hull Track double flange track for attachment to vertical surfaces, 1-3/4" wide 1/2" I.D., cut to lengths up to 24 ft



Lacing Attachment Hardware

Part Number Item Description
VS5 5/16" Round Based Slide Round Based Lacing Slide, Nylon Slug with Molded in 1/8" Stainless Steel bail fits into 5/16" I.D. track
VS3 3/8" Round Based Slide Round Based Lacing Slide, Nylon Slug with Molded in 1/8" Stainless Steel bail fits into 3/8" I.D. track
VS7 7/16" Round Based Slide Round Based Lacing Slide, Nylon Slug with Molded in 1/8" Stainless Steel bail fits into 7/16" I.D. track
VS1 1/2" Round Based Slide Round Based Lacing Slide, Nylon Slug with Molded in 1/8" Stainless Steel bail fits into 1/2" I.D. track
VSS5 5/8" Flat Based Slide Flat Based Lacing Slide, all Stainless Steel, 1/4" Bail, fits into 3/4" wide channel
VSS3 3/4" Flat Based Slide Flat Based Lacing Slide, all Stainless Steel, 1/4" Bail, fits into 7/8" wide channel
VSS7 7/8" Flat Based Slide Flat Based Lacing Slide, all Stainless Steel, 1/4" Bail, fits into 1" wide channel
VSE 5/8" Eye Straps Stainless Steel Eye Straps 5/8" height and Inside width, 1/8" stock, polished edges
VSNTB NETNOB® Lacing Button Machined Aluminum, corrosion resistant non-conductive Hard Anodize coating. Replacements for Lagoon, Fontain Pajot and Nautitech Boats or new installations. Uses a 6mm bolt flat head bolt

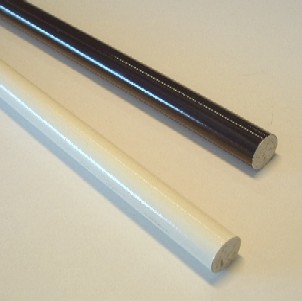

Battens

Part Number Item Description
VBRB5 5/8" Battens black 5/8" diameter round fiberglass battens coated black cut to lengths up to 24 ft
VBRW5 5/8" Battens white 5/8" diameter round fiberglass battens coated white cut to lengths up to 24 ft
VBRB7 7/16" Battens black 7/16" diameter round fiberglass battens coated black cut to lengths up to 20 ft
VBRW7 7/16" Battens white 7/16" diameter round fiberglass battens coated white cut to lengths up to 20 ft
VBECB 5/8" Batten End Caps black set of 2 black Delron End Caps with stainless steel shoulder bolt and lock nut for 5/8" battens

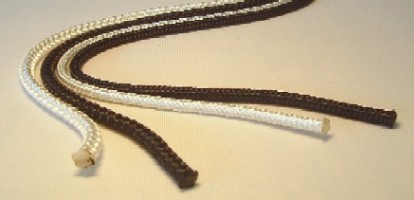

Lacing Line


Part Number Item Description
VLB14 1/4" Lacing Line black 1/4" diameter Polyester double braid line black
VLW14 1/4" Lacing Line white 1/4" diameter Polyester double braid line black
VLB316 3/16" Lacing Line black 3/16" diameter Polyester double braid line black
VLW316 3/16" Lacing Line white 3/16" diameter Polyester double braid line white
